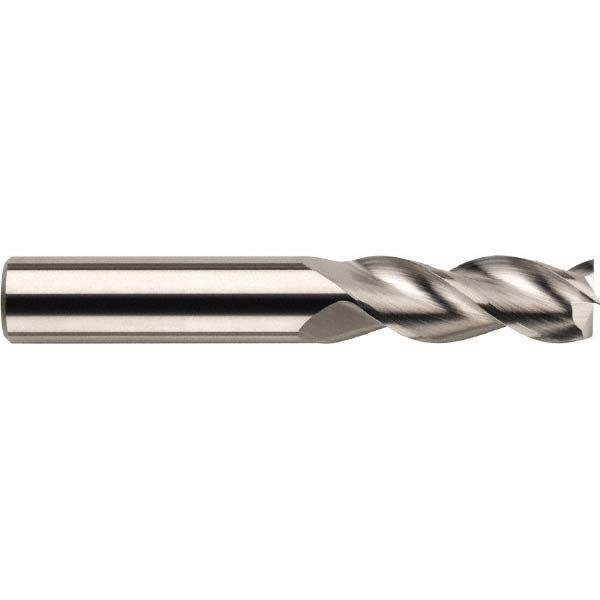

5/16" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 32730

SGS

5/16" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 32730

MFR# 32730Series 43L

$78.76List $101.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
CoatingTiB2

Description

The SGS 32730 is a 5/16 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 7/16 length of cut, 4 overall length. Series 43L.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in7/16
Length of cut range0.3000 - 0.5000
Length typeLong
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.00000/-0.00035 in
Number of flutes3
Overall length in4
Primary workpiece materialNon-Ferrous Metal
Reach length in1-1/8
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
