SGS

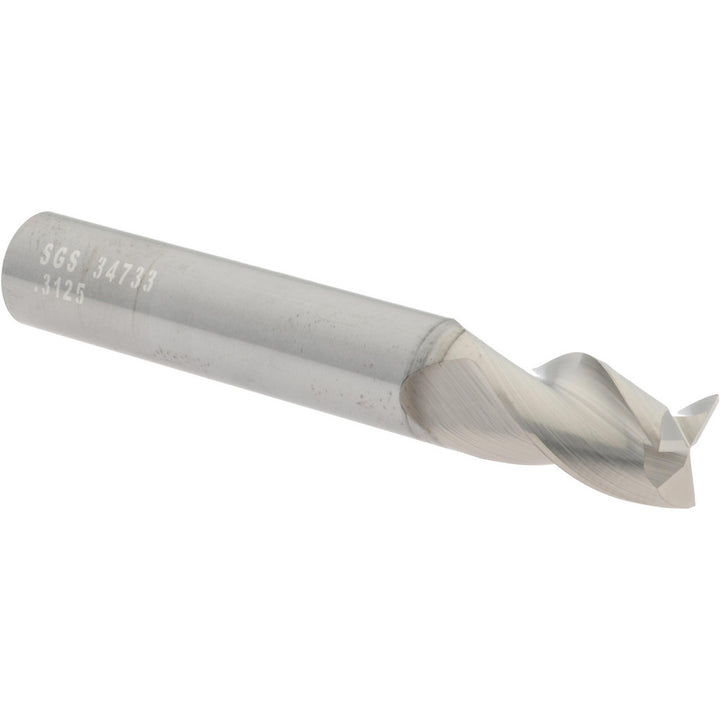

5/16" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 34733

MFR# 34733Series 43

$41.87List $53.70 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes3

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 34733 is a 5/16 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 7/16 length of cut, 2 overall length. Series 43.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in7/16

Length of cut range0.3000 - 0.5000

Length typeRegular

Material gradeMicrograin

Mill diameter in5/16

Mill diameter tolerance+0.00000/-0.00035 in

Number of flutes3

Overall length in2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/16

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
