5/16" 3-Flute Solid Carbide Square End Mill - GWS 101028

GWS

5/16" 3-Flute Solid Carbide Square End Mill - GWS 101028

MFR# 101028Series 1026; Alumigator

$88.23List $111.19 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

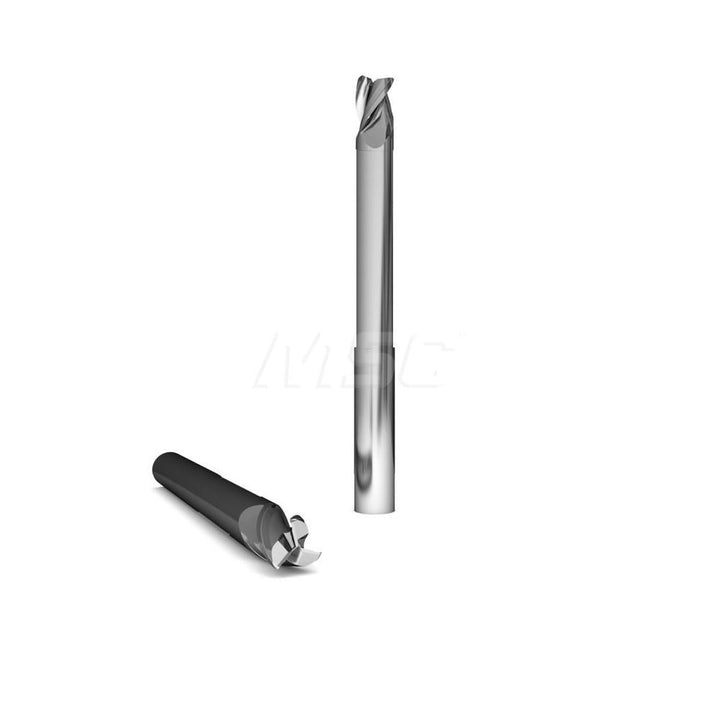

The GWS 101028 is a 5/16 3-flute Solid Carbide (Submicron) square end mill. 7/16 length of cut, 4 overall length. Series 1026; Alumigator.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeUpcut
Helix angle37
Length of cut in7/16
Material gradeSubmicron
Mill diameter in5/16
Neck diameter (mm)0.3
Number of flutes3
Overall length in4
Reach length in2-1/8
Shank diameter in5/16
Variable helixNo
Variable indexNo
