M.A. Ford.

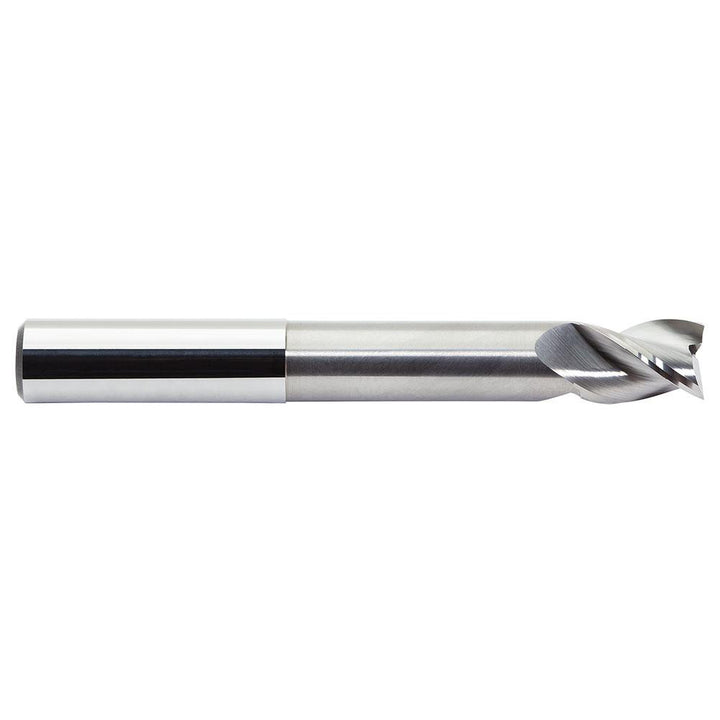

5/16" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 13831210N
MFR# 13831210NSeries 138N
$151.32List $190.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The M.A. Ford. 13831210N is a 5/16 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 7/16 length of cut, 6 overall length. Series 138N.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle36
Length of cut in7/16
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.0000 to -0.0005 in
Neck length3.125
Number of flutes3
Overall length in6
Primary workpiece materialNon-Ferrous Metal
Reach length3.13
Shank diameter in5/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
