Guhring

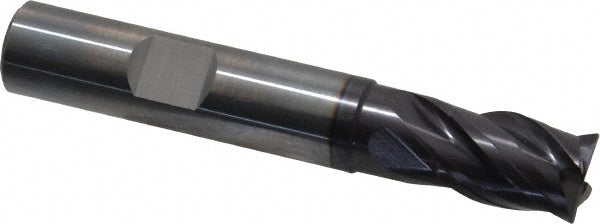

0.4720" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9037310120000

MFR# 9037310120000Series 3731

$93.33List $119.70 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9037310120000 is a 0.4720 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 5/8 length of cut. Series 3731.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35; 38

Length of cut in5/8

Length typeStub

Material gradeProprietary

Maximum helix angle38

Mill diameter0.4720

Mill diameter toleranceh10

Minimum helix angle35

Neck diameter (mm)11.50

Number of flutes4

Overall length (mm)73.00

Primary workpiece materialCast Iron; Steel

Reach length (mm)26.00

Secondary workpiece materialHard Material; Stainless Steel

Shank diameter0.4724

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo
