Walter-Prototyp

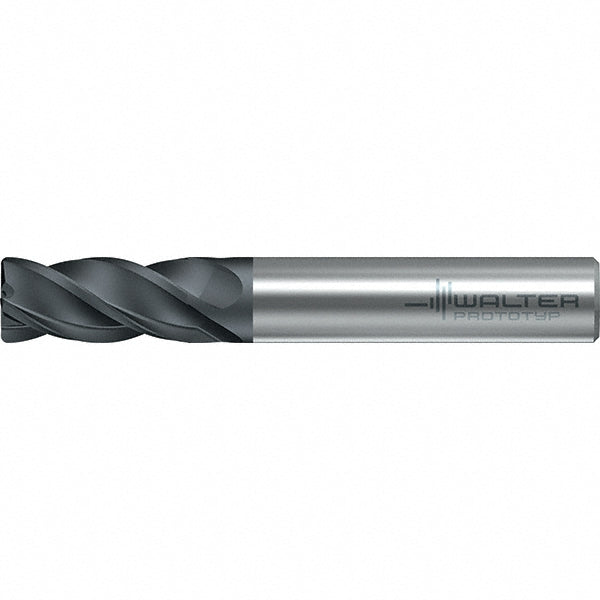

0.4720" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Walter-Prototyp 6814334

MFR# 6814334Cat# MC251-12.0-A4B165Series MC251

$199.57List $255.96 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Walter-Prototyp 6814334 is a 0.4720 4-flute Solid Carbide (WK40RC) corner radius end mill with a TiAlN finish for longer tool life. Suited for stainless steel. 1-1/4 length of cut. Series MC251.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Corner radius0.0650

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeVariable

For use withToolholders

Length of cut in1-1/4

Length typeExtended

Manufacturers catalog numberMC251-12.0-A4B165

Material applicationStainless Steel

Material gradeWK40RC

Material removal typeRoughing & Finishing

Mill diameter0.4720

Mill diameter toleranceh9

Number of flutes4

Overall length (mm)83.00mm

PitchNormal

Primary workpiece materialStainless Steel

Reach length (mm)38.00

Secondary workpiece materialSuperalloys & Titanium

Shank diameter (mm)12.00mm

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
