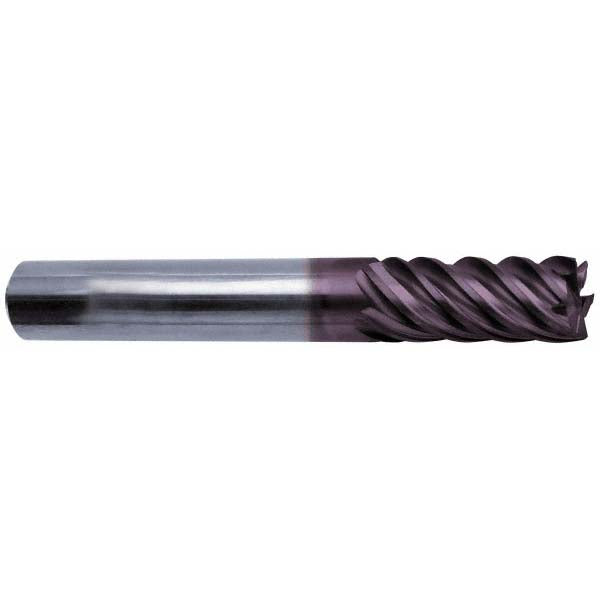

5/8" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Guhring 9042630158700

MFR# 9042630158700Series 4263

$209.45List $268.62 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingTiAlN

Description

The Guhring 9042630158700 is a 5/8 5-flute Solid Carbide (K40) corner radius & corner chamfer end mill with a TiAlN; TiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/4 length of cut, 3-1/2 overall length. Series 4263.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0060

Chamfer width0.0060

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle45

Helix styleHigh

Length of cut in1-1/4

Length typeRegular

Manufacturers catalog number9042630158700

Material gradeK40

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter toleranceh10

Number of flutes5

Overall length in3-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in1-1/4

Secondary workpiece materialNon-Ferrous Metal; Hard Material

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
