5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4048729

Kennametal

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4048729

MFR# 4048729Series UCDE

$471.75List $594.52 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

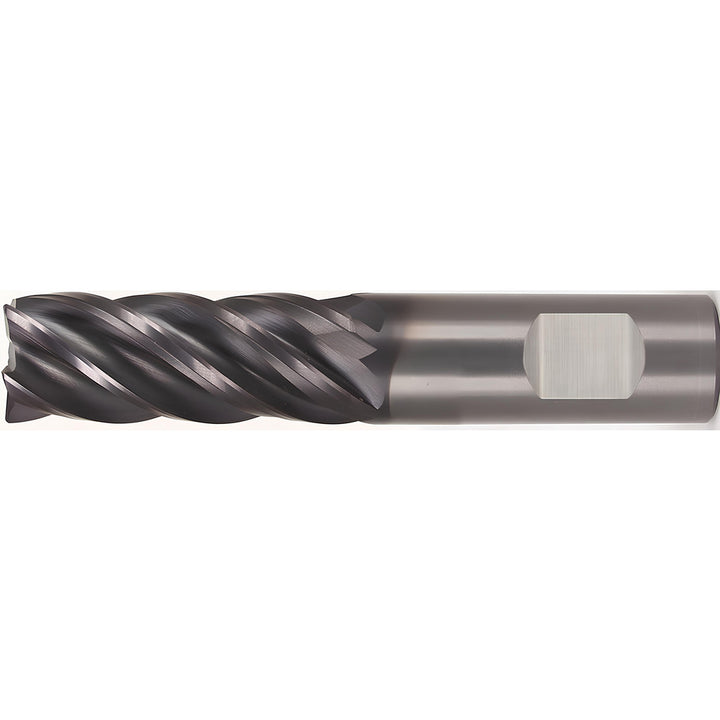

The Kennametal 4048729 is a 5/8 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1-1/4 length of cut, 3-1/2 overall length. Series UCDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores
Helix styleHigh
Length of cut in1-1/4
Length typeLong
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in5/8
Number of flutes5
Overall length in3-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in5/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
