5/8" 5-Flute Solid Carbide Square End Mill, TiAlN - OSG HP455-6250

OSG

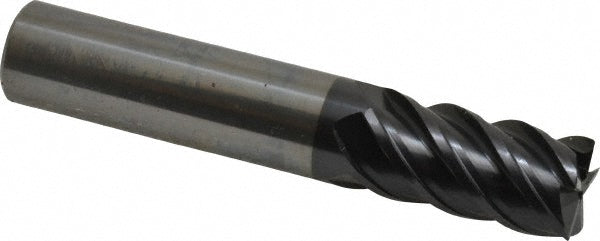

5/8" 5-Flute Solid Carbide Square End Mill, TiAlN - OSG HP455-6250

MFR# HP455-6250Series HP455

$154.90List $198.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG HP455-6250 is a 5/8 5-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series HP455.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Number of flutes5
Overall length in3-1/2
Shank diameter in5/8
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

GWS5/8" 5-Flute Solid Carbide Square End Mill, nACRo - GWS 119764 $196.17 Guhring5/8" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Guhring 9042630158700 $209.45 Kennametal5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4048729 $399.61 Kennametal5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 3899195 $377.59
