Guhring

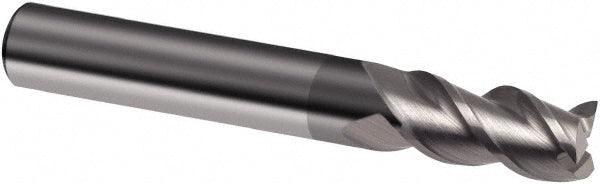

1/2" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9042650127000

MFR# 9042650127000Series 4265

$121.85List $156.28 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9042650127000 is a 1/2 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1-1/4 length of cut, 3-1/2 overall length. Series 4265.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle39; 40; 41

Length of cut in1-1/4

Length typeRegular

Material gradeProprietary

Maximum helix angle41

Mill diameter in1/2

Mill diameter toleranceh10

Minimum helix angle39

Number of flutes3

Overall length in3-1/2

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo
