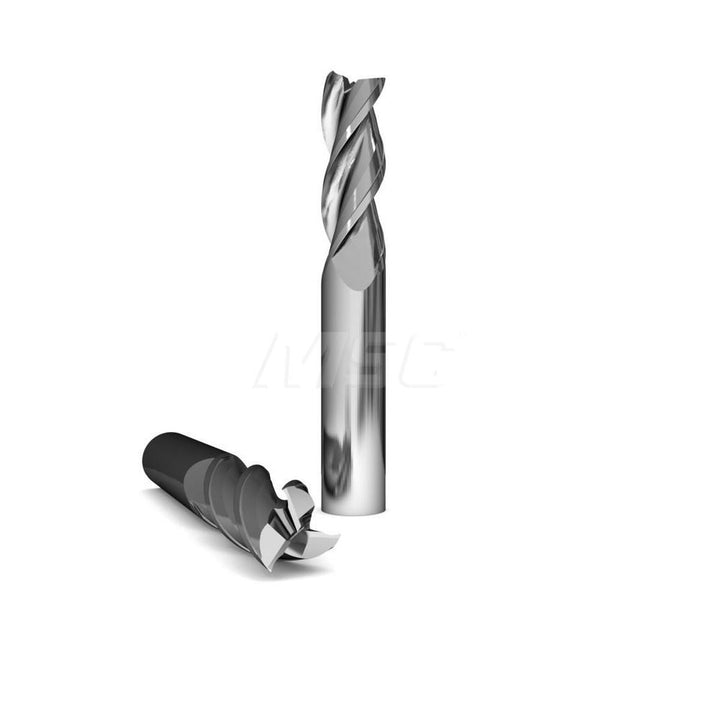

3/16" 3-Flute Solid Carbide Square End Mill, ZrN - GWS 100952

MFR# 100952Series 1025; Alumigator

$48.71List $62.48 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The GWS 100952 is a 3/16 3-flute Solid Carbide (Submicron) square end mill with a ZrN finish for longer tool life. 5/8 length of cut, 2 overall length. Series 1025; Alumigator.

Specifications

CentercuttingYes

Coating finishZrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle37

Length of cut in5/8

Material gradeSubmicron

Mill diameter in3/16

Number of flutes3

Overall length in2

Shank diameter in3/16

Variable helixNo

Variable indexNo
