3/16" 3-Flute Solid Carbide Square End Mill - RobbJack C1-301-06

RobbJack

3/16" 3-Flute Solid Carbide Square End Mill - RobbJack C1-301-06

MFR# C1-301-06Series C1-301

$36.70List $40.10 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide

Description

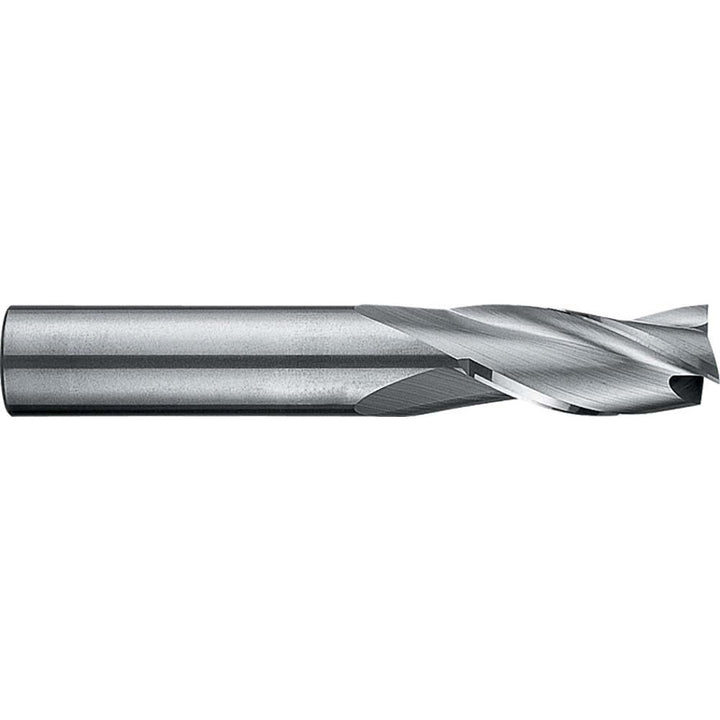

The RobbJack C1-301-06 is a 3/16 3-flute Solid Carbide (C2) square end mill. 5/8 length of cut, 2 overall length. Series C1-301.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeRegular
Material gradeC2
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
