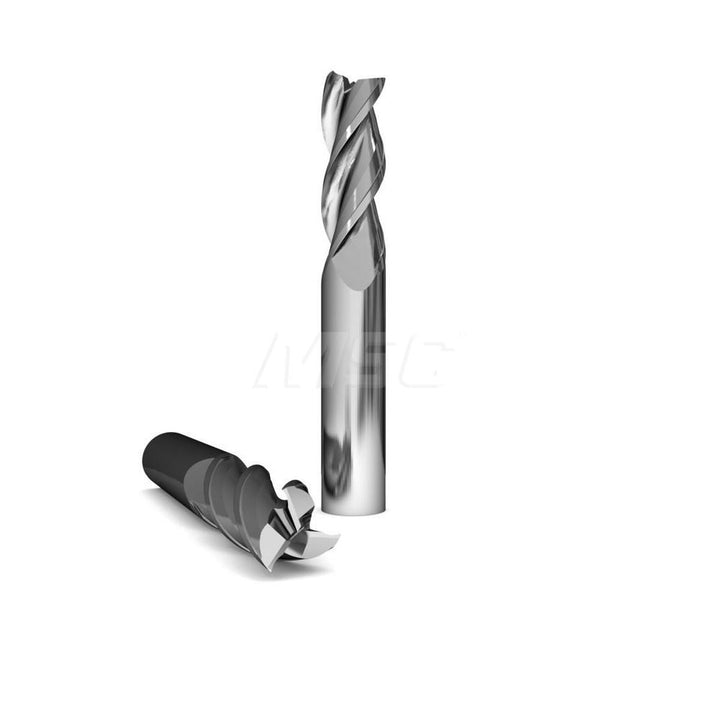

5/8" 3-Flute Solid Carbide Square End Mill, ZrN - GWS 101013

MFR# 101013Series 1025; Alumigator

$276.24List $354.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The GWS 101013 is a 5/8 3-flute Solid Carbide (Submicron) square end mill with a ZrN finish for longer tool life. 2-1/2 length of cut, 5 overall length. Series 1025; Alumigator.

Specifications

CentercuttingYes

Coating finishZrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle37

Length of cut in2-1/2

Material gradeSubmicron

Mill diameter in5/8

Number of flutes3

Overall length in5

Shank diameter in5/8

Variable helixNo

Variable indexNo
