3/8" 3-Flute Solid Carbide Corner Radius End Mill - GWS 105277

GWS

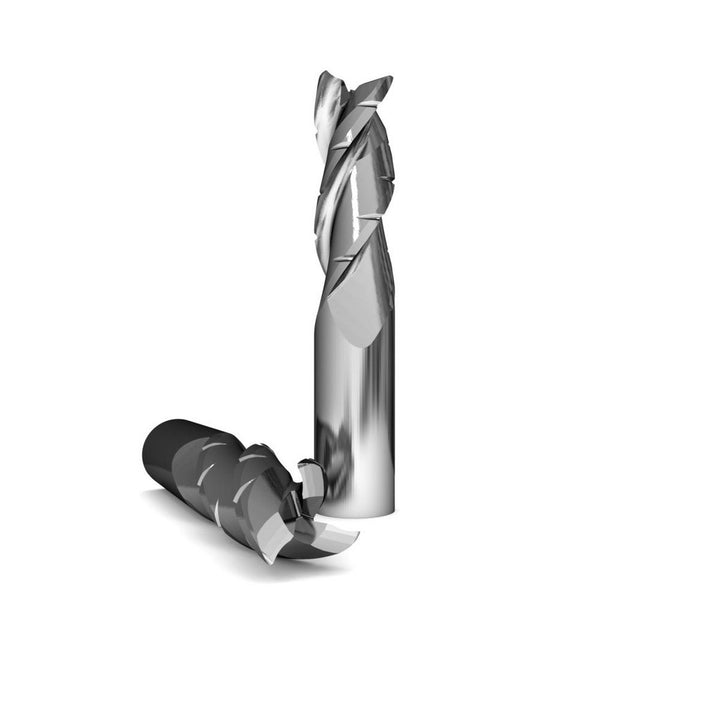

3/8" 3-Flute Solid Carbide Corner Radius End Mill - GWS 105277

MFR# 105277Cat# ARTSU30375-015.5Series 1010; Alumigator

$92.64List $116.75 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The GWS 105277 is a 3/8 3-flute Solid Carbide corner radius end mill. 1/2 length of cut, 3 overall length. Series 1010; Alumigator.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Length of cut in1/2
Manufacturers catalog numberARTSU30375-015.5
Mill diameter in3/8
Neck diameter0.3450
Number of flutes3
Overall length in3
Reach length in1-1/4
Shank diameter in3/8
Single or double endSingle
Variable helixNo
Variable indexNo
