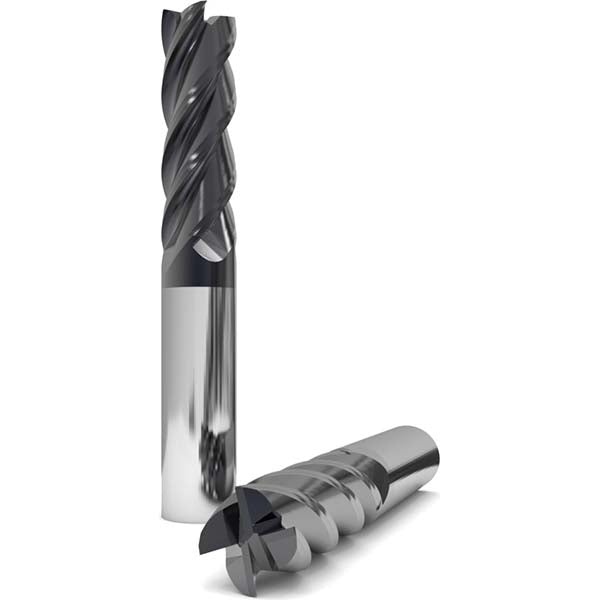

3/8" 4-Flute Solid Carbide Square End Mill, nACRo - GWS 119346

GWS

3/8" 4-Flute Solid Carbide Square End Mill, nACRo - GWS 119346

MFR# 119346Series 1030

$83.52List $107.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingnACRo

Description

The GWS 119346 is a 3/8 4-flute Solid Carbide square end mill. 7/8 length of cut, 2-1/2 overall length. Series 1030.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishnACRo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle38
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Length typeStandard
Mill diameter in3/8
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeSquare
Variable helixYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Widia3/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Widia 5577390 $87.47 Guhring0.3750" 4-Flute Solid Carbide Roughing End Mill, FIREX - Guhring 9031900095200 $178.52 ProMax3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 111-02414 $56.51 Supermill0.3750" 4-Flute Solid Carbide Roughing End Mill, AlTiN - Supermill 5253168 $79.65
