GWS

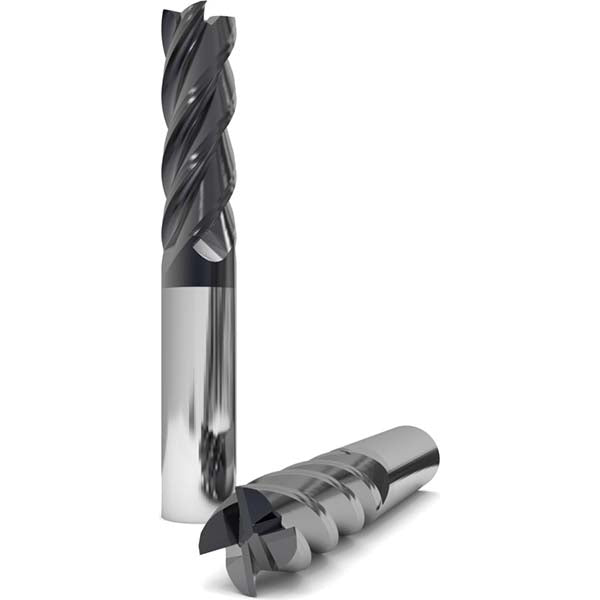

1/2" 4-Flute Solid Carbide Square End Mill, nACRo - GWS 120437

MFR# 120437Series 1030

$102.47List $131.42 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingnACRo

Description

The GWS 120437 is a 1/2 4-flute Solid Carbide (Submicron) square end mill with a nACRo finish for longer tool life. 5/8 length of cut, 2-1/2 overall length. Series 1030.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishnACRo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Length of cut in5/8

Length of cut range0.6000 - 0.7000

Length typeStandard

Material gradeSubmicron

Mill diameter in1/2

Number of flutes4

Overall length in2-1/2

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeSquare

Variable helixYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
