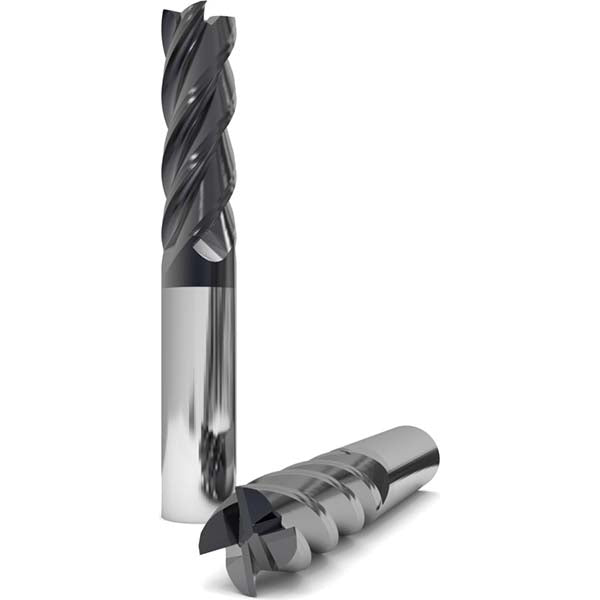

5/8" 4-Flute Solid Carbide Square End Mill, nACRo - GWS 120438

GWS

5/8" 4-Flute Solid Carbide Square End Mill, nACRo - GWS 120438

MFR# 120438Series 1030

$159.91List $205.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingnACRo

Description

The GWS 120438 is a 5/8 4-flute Solid Carbide (Submicron) square end mill with a nACRo finish for longer tool life. 3/4 length of cut, 3 overall length. Series 1030.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishnACRo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeStandard
Material gradeSubmicron
Mill diameter in5/8
Number of flutes4
Overall length in3
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeSquare
Variable helixYes
