GWS

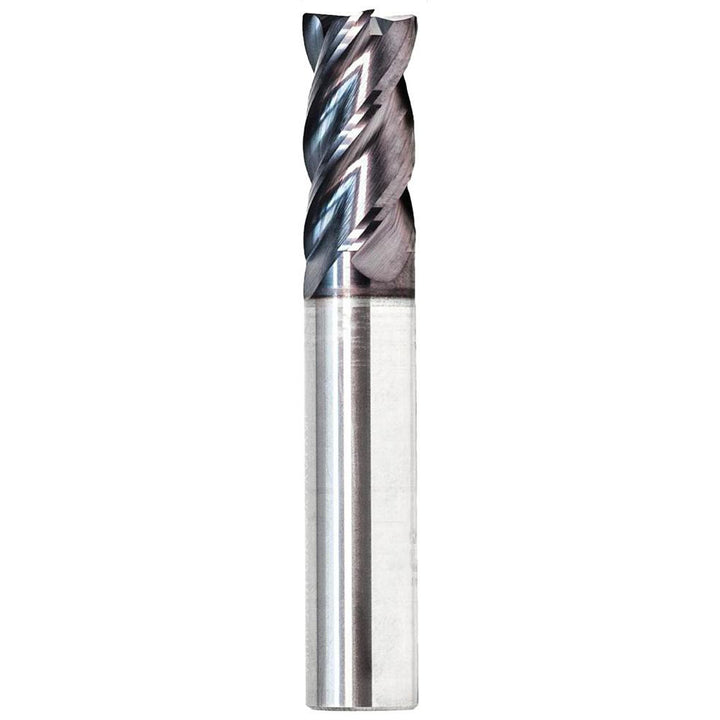

1" 4-Flute Solid Carbide Corner Radius End Mill, FX1 - GWS 121592

MFR# 121592Series 1030

$416.43List $534.09 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes4

MaterialSolid Carbide

CoatingFX1

Description

The GWS 121592 is a 1 4-flute Solid Carbide (Submicron) corner radius end mill with a FX1 finish for longer tool life. Suited for steel, cast iron, superalloys & titanium, hard material. 1-1/2 length of cut, 4 overall length. Series 1030.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFX1

Coolant throughNo

Corner radius0.1200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleVariable

Length of cut in1-1/2

Length typeStub

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in1

Number of flutes4

Overall length in4

PitchNormal

Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium; Hard Material

Secondary workpiece materialStainless Steel

Shank diameter in1

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
