GWS

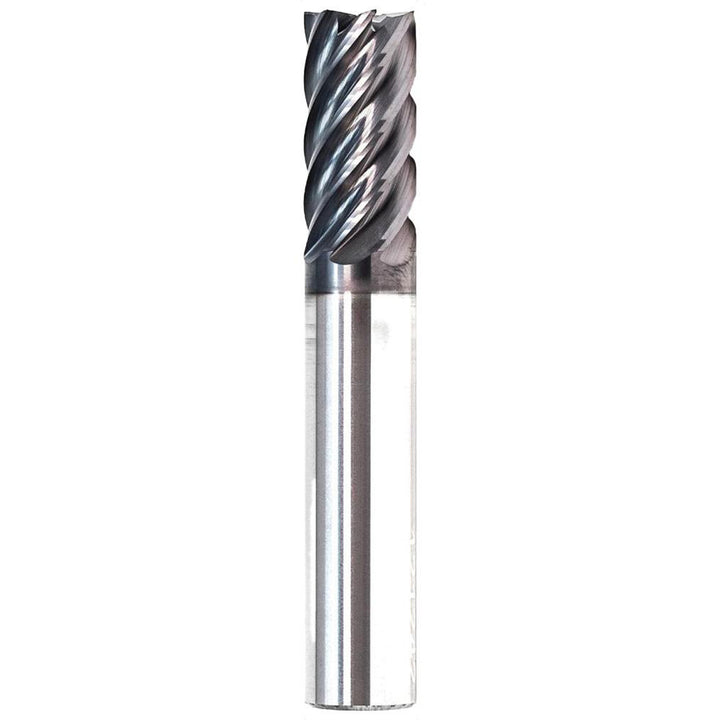

3/16" 7-Flute Solid Carbide Corner Radius End Mill, FX1 - GWS 122616

MFR# 122616Series 1040

$62.92List $80.69 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes7

MaterialSolid Carbide

CoatingFX1

Description

The GWS 122616 is a 3/16 7-flute Solid Carbide (Submicron) corner radius end mill with a FX1 finish for longer tool life. Suited for steel, cast iron, superalloys & titanium, hard material. 5/16 length of cut, 2 overall length. Series 1040.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFX1

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleVariable

Length of cut in5/16

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeFinishing

Mill diameter in3/16

Number of flutes7

Overall length in2

PitchClose

Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium; Hard Material

Secondary workpiece materialStainless Steel

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
