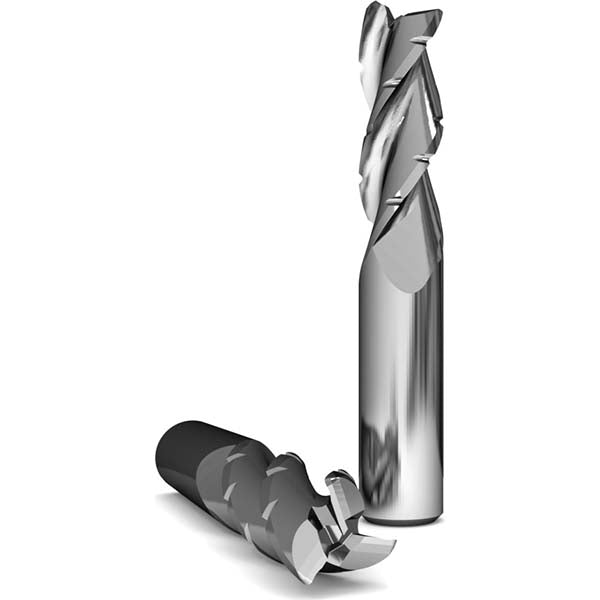

0.6250" 3-Flute Solid Carbide Single End Mill - GWS 125629

GWS

0.6250" 3-Flute Solid Carbide Single End Mill - GWS 125629

MFR# 125629Series 1015

$263.98List $338.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The GWS 125629 is a 0.6250 3-flute Solid Carbide (Submicron) single end mill. 2-1/2 length of cut. Series 1015.

Specifications

Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle37
Length of cut in2-1/2
Length typeStandard
Material gradeSubmicron
Mill diameter0.6250
Mill diameter frac in5/8
Number of flutes3
Shank diameter in5/8
Shank typeSquare
Variable helixNo
