GWS

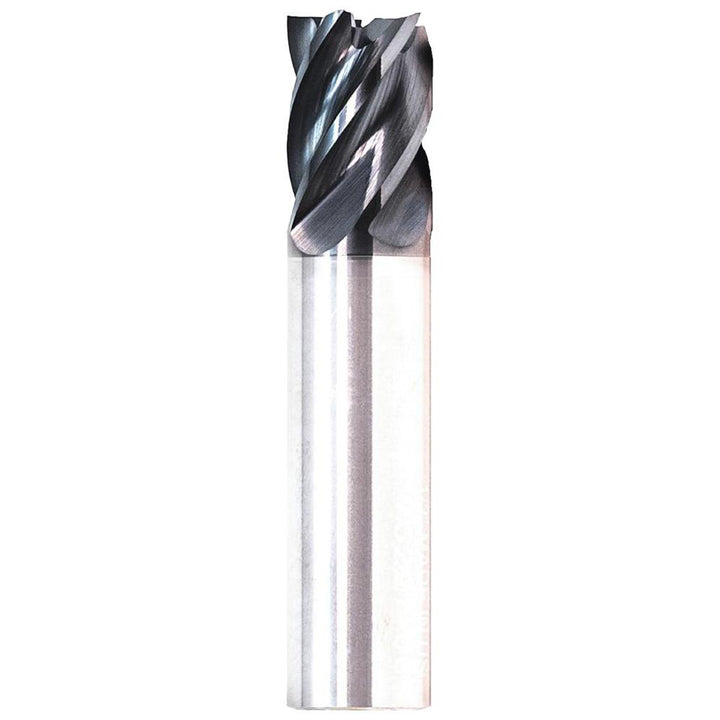

1/4" 5-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 311464

MFR# 311464Series 2205

$65.49List $84.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingFX3

Description

The GWS 311464 is a 1/4 5-flute Solid Carbide (Submicron) corner radius end mill with a FX3 finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 1-1/4 length of cut, 3 overall length. Series 2205.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFX3

Coolant throughNo

Corner radius0.0100

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleVariable

Length of cut in1-1/4

Length typeExtra Long

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Cast Iron

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in1/4

Number of flutes5

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Secondary workpiece materialCast Iron

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
