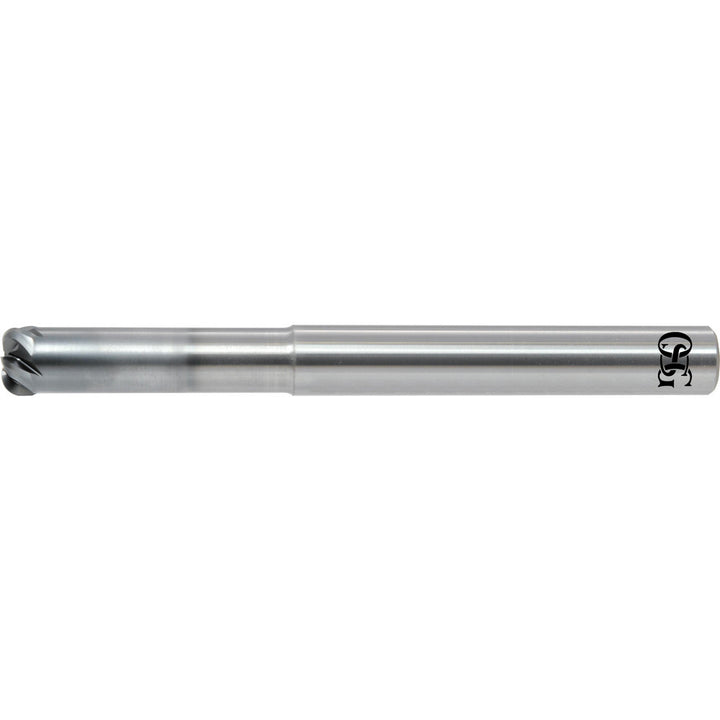

1/4" 5-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 447200213

MFR# 447200213Series 4472

$148.37List $190.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingWXS

Description

The OSG 447200213 is a 1/4 5-flute Solid Carbide corner radius end mill with a WXS finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3 overall length. Series 4472.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishWXS

Coolant throughNo

Corner radius0.0625

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut0.0980

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter tolerance0.0000/-0.0012 in

Neck diameter0.2260

Number of flutes5

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in1

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
