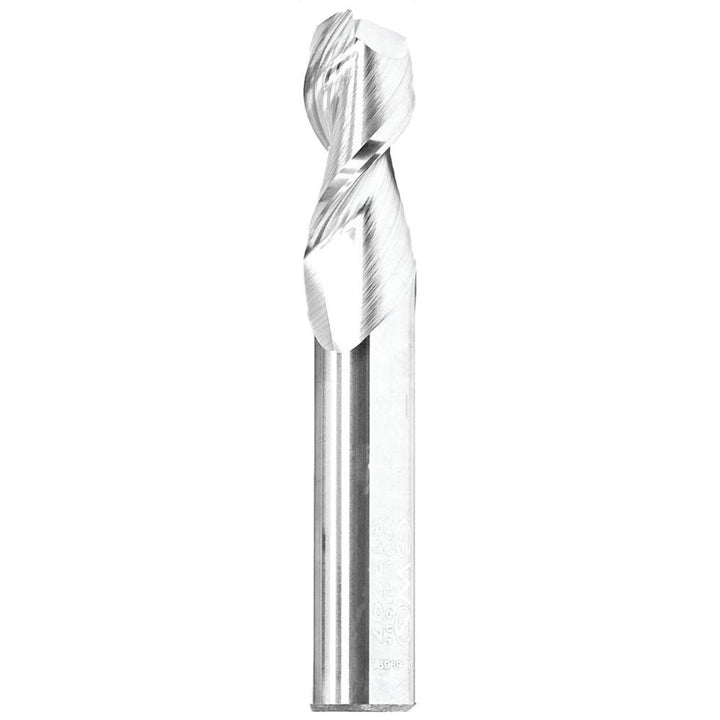

1/4" 2-Flute Solid Carbide Corner Radius End Mill, NF1 - GWS 313054

Name: 1/4" 2-Flute Solid Carbide Corner Radius End Mill, NF1 - GWS 313054
Brand: GWS
SKU: 313054
Price: 58.79 USD
Availability: InStock

MFR# 313054Cat# 25025012060C5Series 2010

$58.79List $75.40 Save 22%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingNF1

Description

The GWS 313054 is a 1/4 2-flute Solid Carbide (Submicron) corner radius end mill with a NF1 finish for longer tool life. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 2010.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishNF1

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in3/4

Length typeStandard

Manufacturers catalog number25025012060C5

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in1/4

Number of flutes2

Overall length in2-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
