1/4" 2-Flute Solid Carbide Square End Mill - Hertel 750469

Hertel

1/4" 2-Flute Solid Carbide Square End Mill - Hertel 750469

MFR# 750469

$35.52List $45.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes2
MaterialSolid Carbide

Description

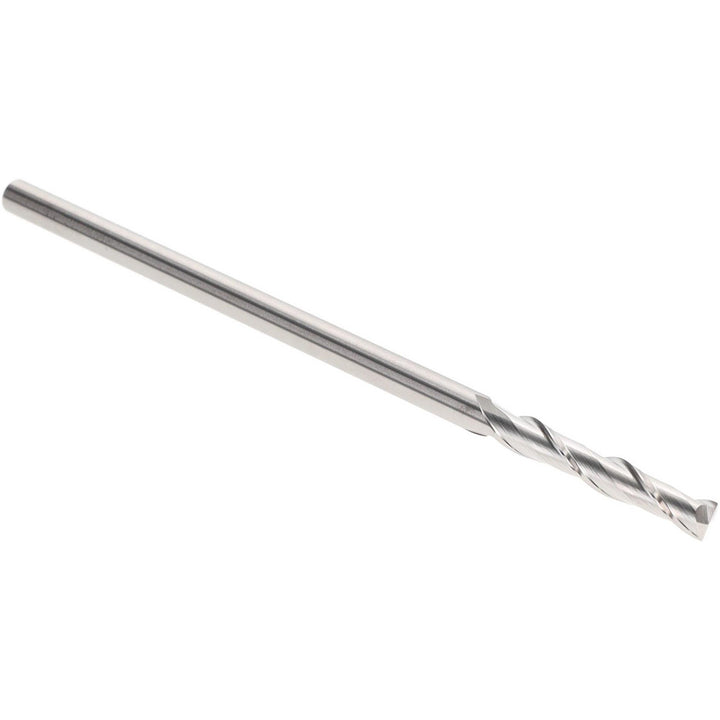

The Hertel 750469 is a 1/4 2-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 6 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in1/4
Number of flutes2
Overall length in6
Shank diameter in1/4
Variable helixNo
Variable indexNo
