GWS

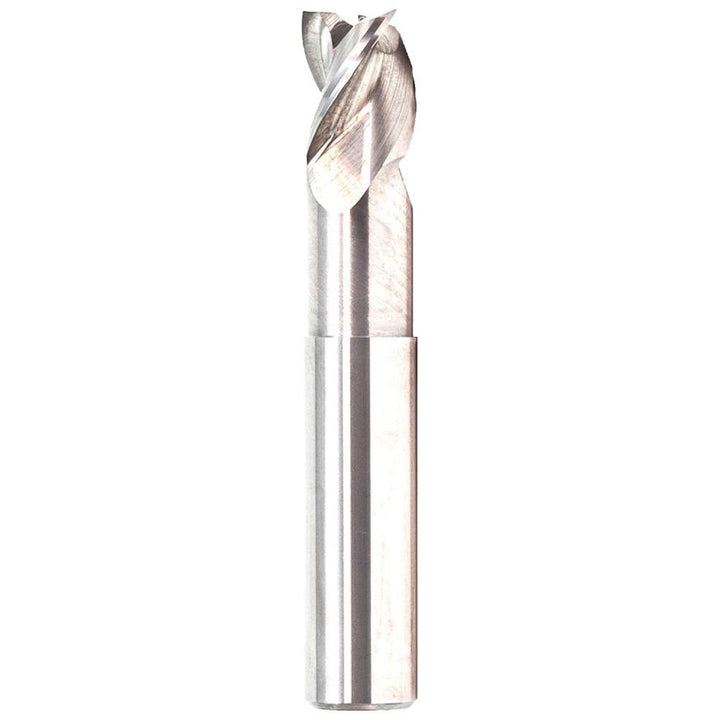

1/4" 3-Flute Solid Carbide Corner Radius End Mill, NF1 - GWS 315399
MFR# 315399Cat# 35025006N18090C5Series 2032
$65.83List $84.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingNF1
Description
The GWS 315399 is a 1/4 3-flute Solid Carbide (Submicron) corner radius end mill with a NF1 finish for longer tool life. Suited for non-ferrous metal. 3/8 length of cut, 2-1/2 overall length. Series 2032.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishNF1
Coolant throughNo
Corner radius0.0900
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut in3/8
Length typeShort
Manufacturers catalog number35025006N18090C5
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in1/4
Number of flutes3
Overall length in2-1/2
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1-1/8
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
