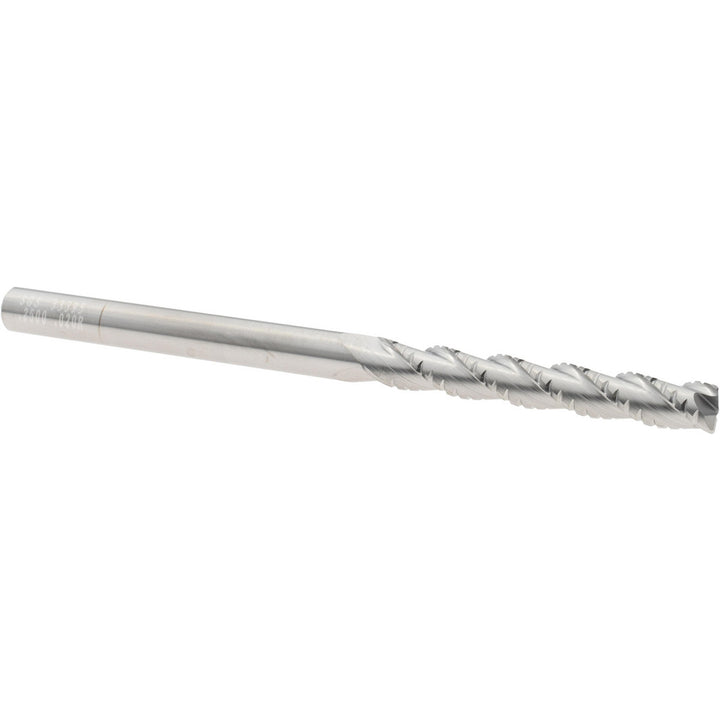

0.25" 3-Flute Solid Carbide Roughing End Mill - SGS 33395

SGS

0.25" 3-Flute Solid Carbide Roughing End Mill - SGS 33395

MFR# 33395Series 43

$62.67List $80.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 33395 is a 0.25 3-flute Solid Carbide roughing end mill. Series 43.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishBright/Uncoated
Corner radius0.0200
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.7500
Maximum helix angle38
Mill diameter0.25
Mill diameter frac in1/4
Mill diameter tolerance+0.000000 to -0.000350 in
Number of flutes3
PitchCoarse
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
