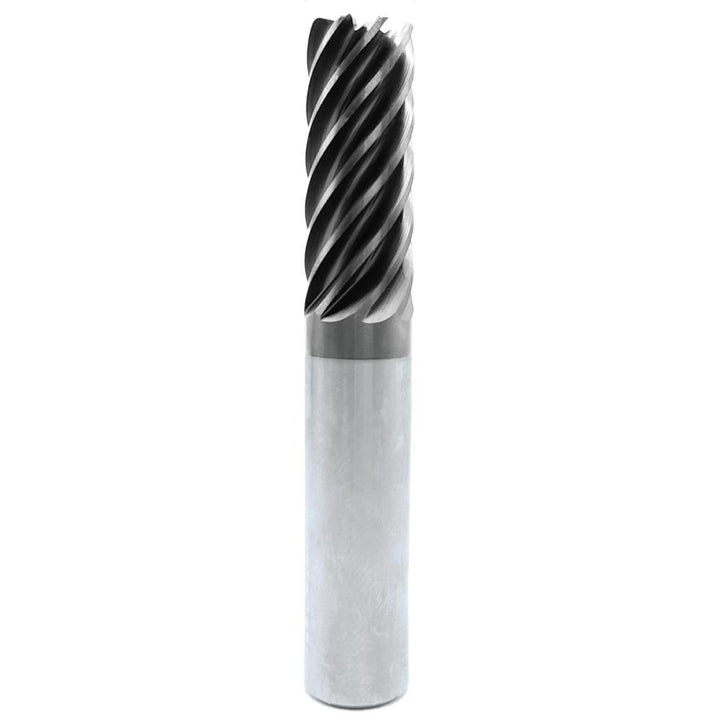

1/2" 8-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 317331

MFR# 317331Cat# 84050010N34030C15Series 280

$174.97List $224.40 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes8

MaterialSolid Carbide

CoatingFX3

Description

The GWS 317331 is a 1/2 8-flute Solid Carbide (Submicron) corner radius end mill with a FX3 finish for longer tool life. Suited for superalloys & titanium. 5/8 length of cut, 4 overall length. Series 280.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFX3

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in5/8

Length typeShort

Manufacturers catalog number84050010N34030C15

Material applicationStainless Steel; Superalloys & Titanium

Material gradeSubmicron

Material removal typeFinishing

Mill diameter in1/2

Number of flutes8

Overall length in4

PitchSuper Close

Primary workpiece materialSuperalloys & Titanium

Reach length in2-1/8

Secondary workpiece materialStainless Steel

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
