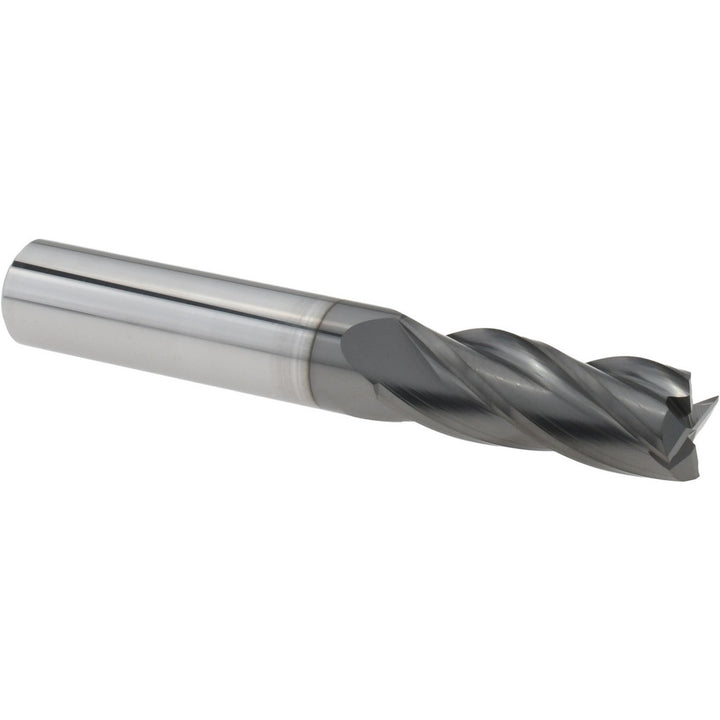

3/8" 4-Flute Solid Carbide Square End Mill, Amorphous Diamond - Harvey Tool 15224-C4

Harvey Tool

3/8" 4-Flute Solid Carbide Square End Mill, Amorphous Diamond - Harvey Tool 15224-C4

MFR# 15224-C4

$80.26List $92.07 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAmorphous Diamond

Description

The Harvey Tool 15224-C4 is a 3/8 4-flute Solid Carbide square end mill with a Amorphous Diamond finish for longer tool life. 1 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
Coating finishAmorphous Diamond
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Mill diameter in3/8
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Variable helixNo
