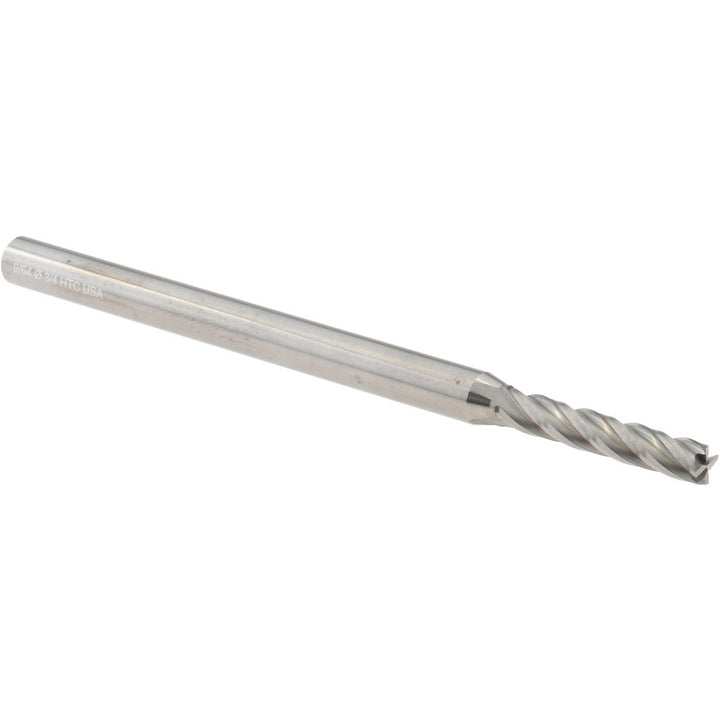

9/64" 4-Flute Solid Carbide Square End Mill - Harvey Tool 31909

Harvey Tool

9/64" 4-Flute Solid Carbide Square End Mill - Harvey Tool 31909

MFR# 31909

$38.82List $45.32 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Harvey Tool 31909 is a 9/64 4-flute Solid Carbide square end mill. 3/4 length of cut, 3 overall length.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Mill diameter in9/64
Number of flutes4
Overall length in3
Shank diameter in3/16
Variable helixNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Harvey Tool9/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 31909-C3 $46.92 Harvey Tool9/64" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 966715-C3 $44.85 Kennametal9/64" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN/TiAlN - Kennametal 5824337 $24.26 Titan USA9/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC99509 $19.73
