9/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 31909-C3

Harvey Tool

9/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 31909-C3

MFR# 31909-C3

$46.92List $54.78 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

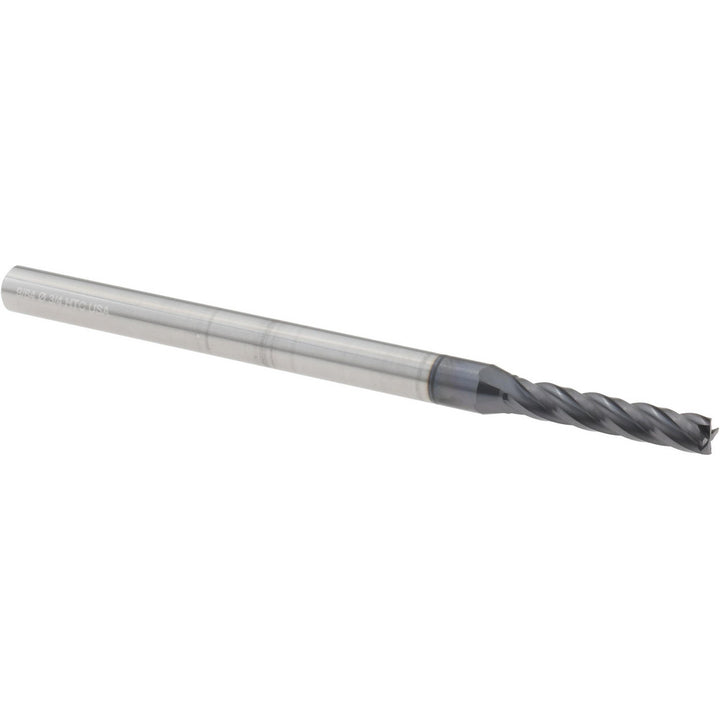

The Harvey Tool 31909-C3 is a 9/64 4-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. 3/4 length of cut, 3 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Mill diameter in9/64
Number of flutes4
Overall length in3
Shank diameter in3/16
Variable helixNo
