Harvey Tool

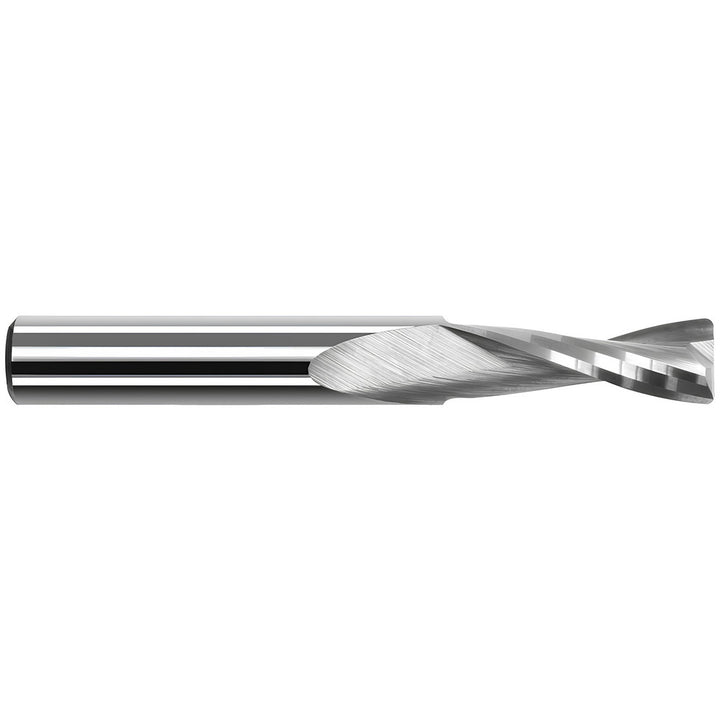

3/16" 2-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 56412
MFR# 56412Series End Mills for Plastics - Corner Radius Upcut - 2 Flute; Material Specific End Mills
$50.28List $54.47
Save 7%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Harvey Tool 56412 is a 3/16 2-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal, non-iso. 2 overall length. Series End Mills for Plastics - Corner Radius Upcut - 2 Flute; Material Specific End Mills.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0150
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleLow
Length of cut0.5700
Length typeRegular
Material applicationAluminum; Wood; Composite
Material removal typeRoughing & Finishing
Mill diameter in3/16
Mill diameter tolerance0.0000/-0.0020 in
Number of flutes2
Overall length in2
Overall length tolerance0.0100/-0.0000 in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal; Non-ISO
Shank diameter in3/16
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
