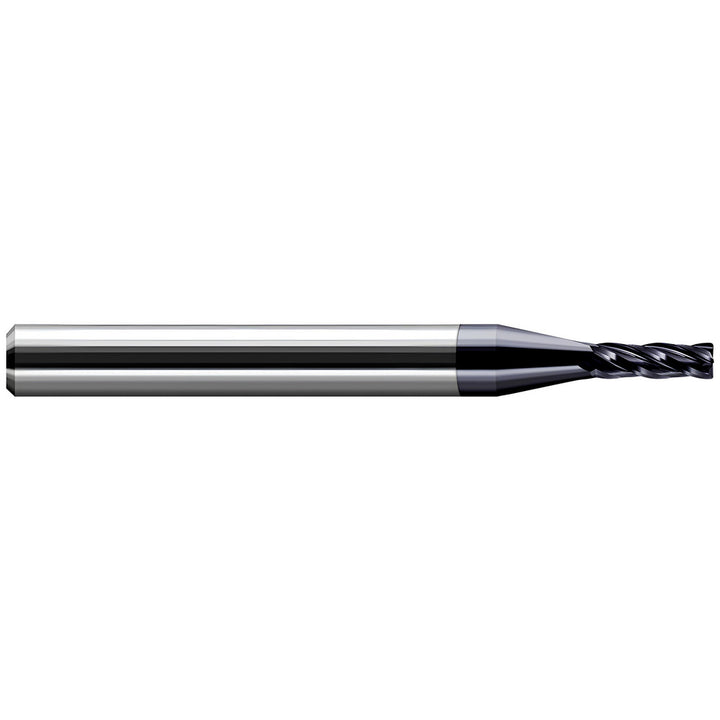

3/8" 4-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 72825

MFR# 72825Series Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills

$63.79List $74.47 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Harvey Tool 72825 is a 3/8 4-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 1 length of cut, 2-1/2 overall length. Series Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0250

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut in1

Length typeRegular

Material applicationAluminum; Cast Iron; Steel; Stainless Steel; Wood; Composite

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance0.0000/-0.0020 in

Number of flutes4

Overall length in2-1/2

Overall length tolerance0.0100/-0.0000 in

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO

Shank diameter in3/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
