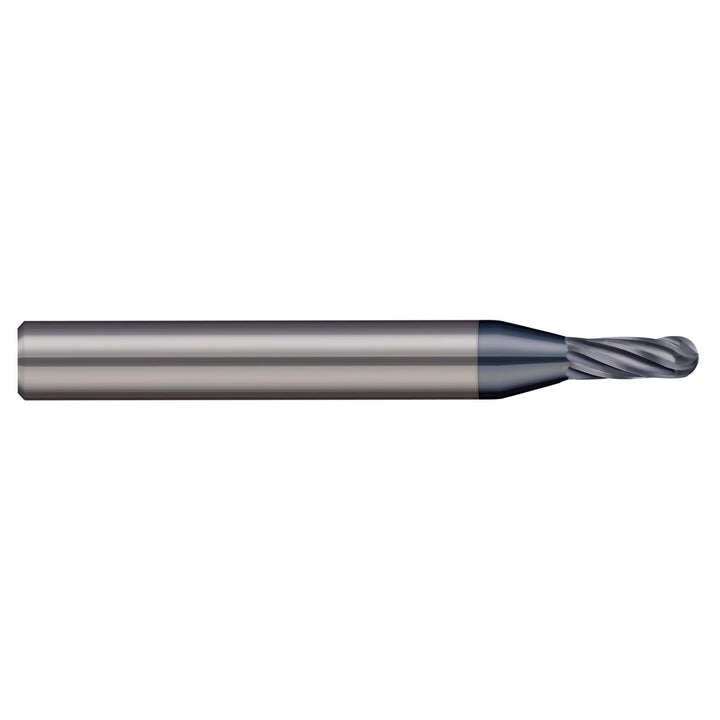

1/8" 6-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 763508-C6

Harvey Tool

1/8" 6-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 763508-C6

MFR# 763508-C6Series End Mills for Hardened Steels - Ball - For Steels 45-68 Rc, Material Specific End Mills

$61.85List $70.95 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes6
MaterialSolid Carbide
CoatingAlTiN Nano

Description

The Harvey Tool 763508-C6 is a 1/8 6-flute Solid Carbide (Carbide) ball end mill with a AlTiN Nano finish for longer tool life. Suited for hard material. 3/8 length of cut, 2-1/2 overall length. Series End Mills for Hardened Steels - Ball - For Steels 45-68 Rc, Material Specific End Mills.

Specifications

ChipbreakerNo
Coating finishAlTiN Nano
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle20
Helix styleVariable
Length of cut in3/8
Length typeStandard
Manufacturers catalog number763508-C6
Material gradeCarbide
Material removal typeRoughing
Mill diameter in1/8
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.0625
Number of flutes6
Overall length in2-1/2
Primary workpiece materialHard Material
Reach length in3/8
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexNo
