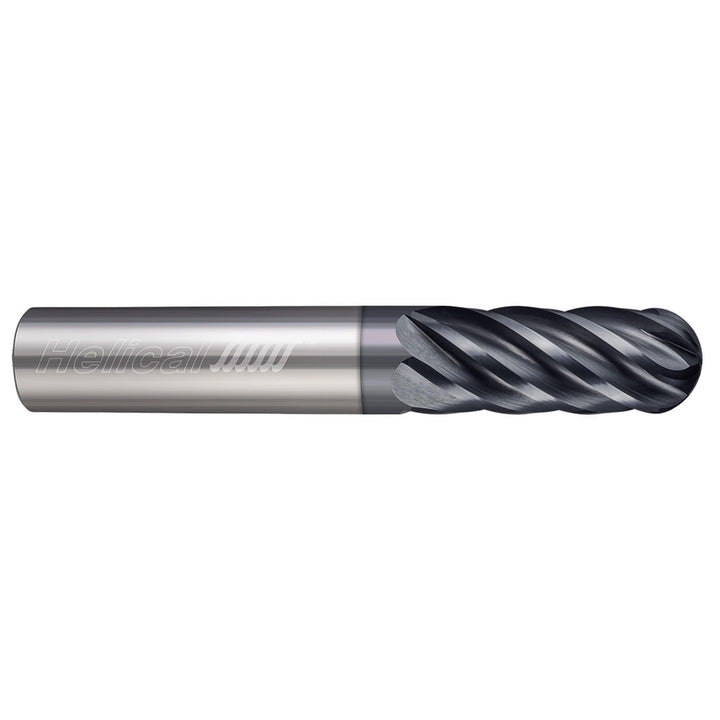

1/8" 6-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 84409

Helical Solutions

1/8" 6-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 84409

MFR# 84409Series 6 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, Cast Iron, & Titanium

$37.29List $42.79 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes6
MaterialSolid Carbide
CoatingAPLUS

Description

The Helical Solutions 84409 is a 1/8 6-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for superalloys & titanium. 5/8 length of cut, 2-1/2 overall length. Series 6 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, Cast Iron, & Titanium.

Specifications

ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in5/8
Length typeLong
Manufacturers catalog number84409
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.0625
Number of flutes6
Overall length in2-1/2
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialSuperalloys & Titanium
Reach length in5/8
Secondary workpiece materialSteel
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
