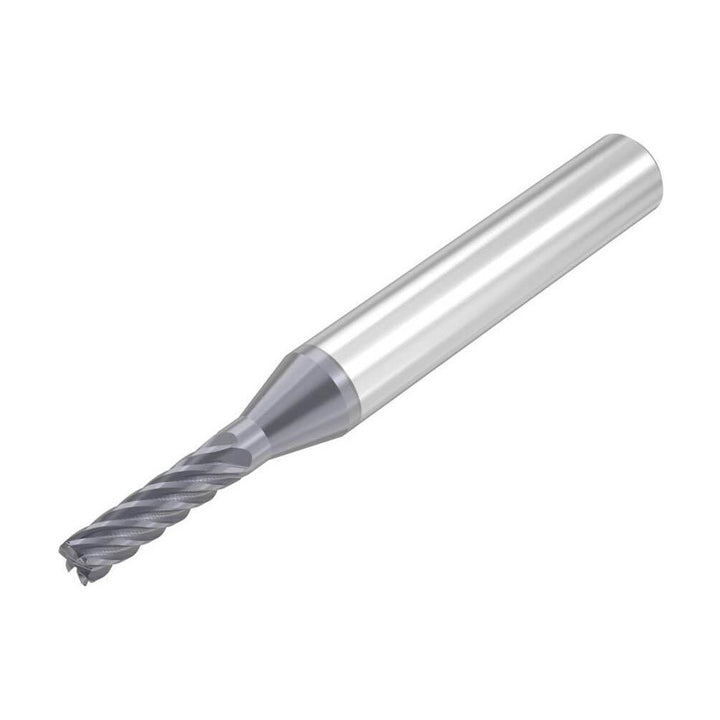

0.1250" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 10072630

Seco

0.1250" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 10072630

MFR# 10072630Series S638

$65.81List $84.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

The Seco 10072630 is a 0.1250 6-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. 3/16 length of cut. Series S638.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Helix angle38
Length of cut in3/16
Length typeShort
Mill diameter0.1250
Mill diameter frac in1/8
Mill diameter tolerance+0.0000/+0.0020 in
Neck diameter in0.1250
Number of flutes6
Reach length0.3025
Shank diameter in1/4
Shank typeStraight
Single or double endSingle
Variable helixNo
Variable indexYes
