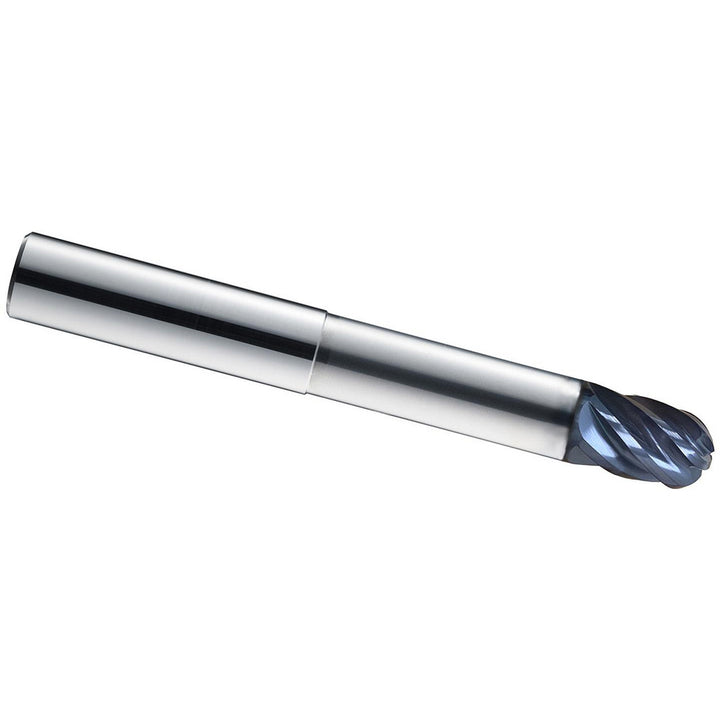

1/4" 6-Flute Solid Carbide Ball End Mill, Ti-NAMITE-X - SGS 35221

MFR# 35221Series 51B

$61.28List $78.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes6

MaterialSolid Carbide

CoatingTi-NAMITE-X

Description

The SGS 35221 is a 1/4 6-flute Solid Carbide (Micrograin) ball end mill with a Ti-NAMITE-X finish for longer tool life. 3/8 length of cut, 4 overall length. Series 51B.

Specifications

Coating finishTi-NAMITE-X

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Helix angle35 to 45

Helix styleHigh

Length of cut in3/8

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.0000 to -0.0016

Neck length in2-1/4

Number of flutes6

Overall length in4

Reach length in1-1/8

Shank diameter in1/4

Single or double endSingle

Variable helixNo

Variable indexYes
