Harvey Tool

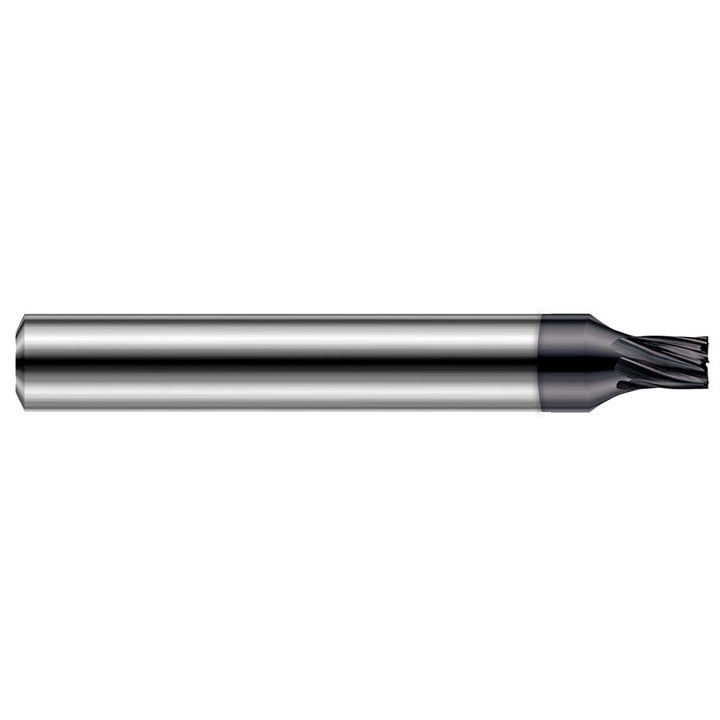

1/4" 7-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 854816-C6

MFR# 854816-C6Series End Mills for Hardened Steels - Square - For Steels 45-68 Rc

$119.47List $139.48 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes7

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 854816-C6 is a 1/4 7-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 3/4 length of cut, 2-1/2 overall length. Series End Mills for Hardened Steels - Square - For Steels 45-68 Rc.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle20

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Mill diameter in1/4

Number of flutes7

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials

Shank diameter in1/4

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexNo
