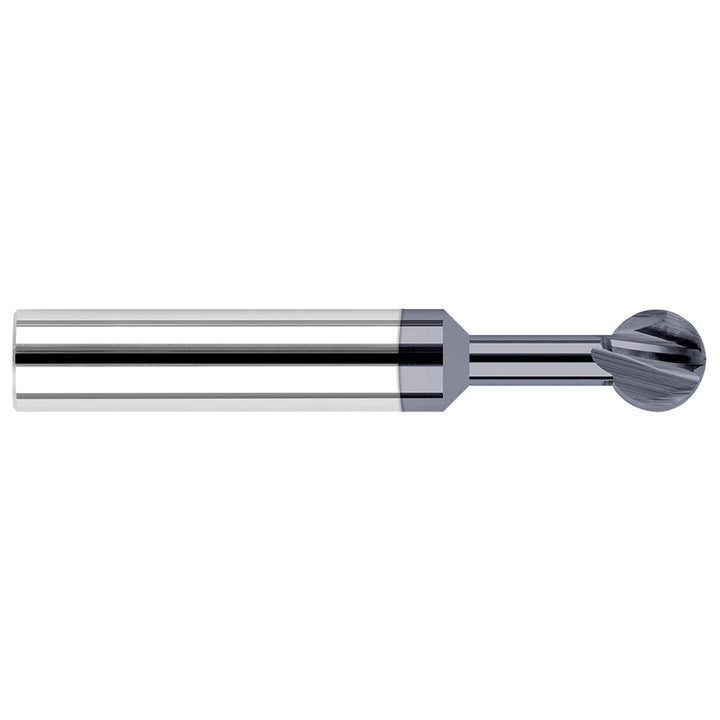

3/8" 4-Flute Solid Carbide Undercutting End Mill, AlTiN - Harvey Tool 940124-C3

Harvey Tool

3/8" 4-Flute Solid Carbide Undercutting End Mill, AlTiN - Harvey Tool 940124-C3

MFR# 940124-C3

$227.36List $265.43 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 940124-C3 is a 3/8 4-flute Solid Carbide undercutting end mill with a AlTiN finish for longer tool life. 3 overall length.

Specifications

Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut0.3490
Mill diameter in3/8
Neck diameter0.1719
Neck length1.2500
Number of flutes4
Overall length in3
Shank diameter in3/8
Single or double endSingle
Variable helixNo
Variable indexNo
Wrap angle degrees300
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
