OSG

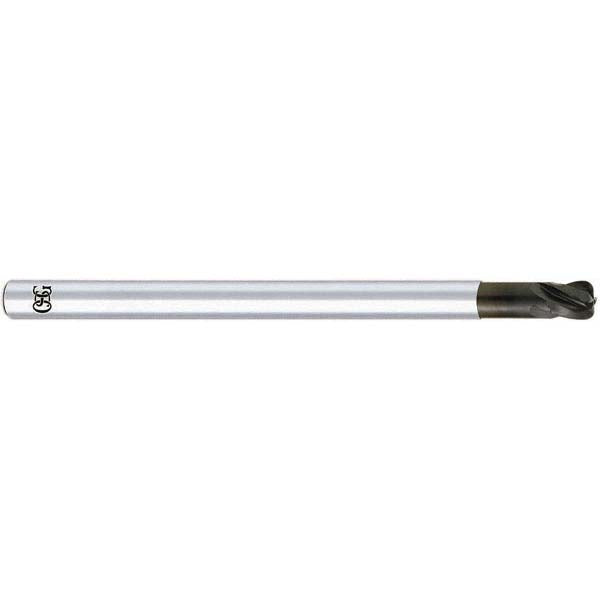

3/8" 4-Flute Solid Carbide Corner Radius End Mill, Diamond - OSG 70720716
MFR# 70720716Series 7072
$266.89List $336.35
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingDiamond
Description
The OSG 70720716 is a 3/8 4-flute Solid Carbide corner radius end mill with a Diamond finish for longer tool life. Suited for non-ferrous metal, graphite. 3/8 length of cut, 4 overall length. Series 7072.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishDiamond
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleMedium
Length of cut in3/8
Length typeStub
Material applicationNon-Ferrous Metal; Graphite
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance0.0000 to -0.0020 in
Neck diameter0.3560
Number of flutes4
Overall length in4
PitchNormal
Primary workpiece materialNon-Ferrous Metal; Graphite
Reach length in1-1/8
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
