Harvey Tool

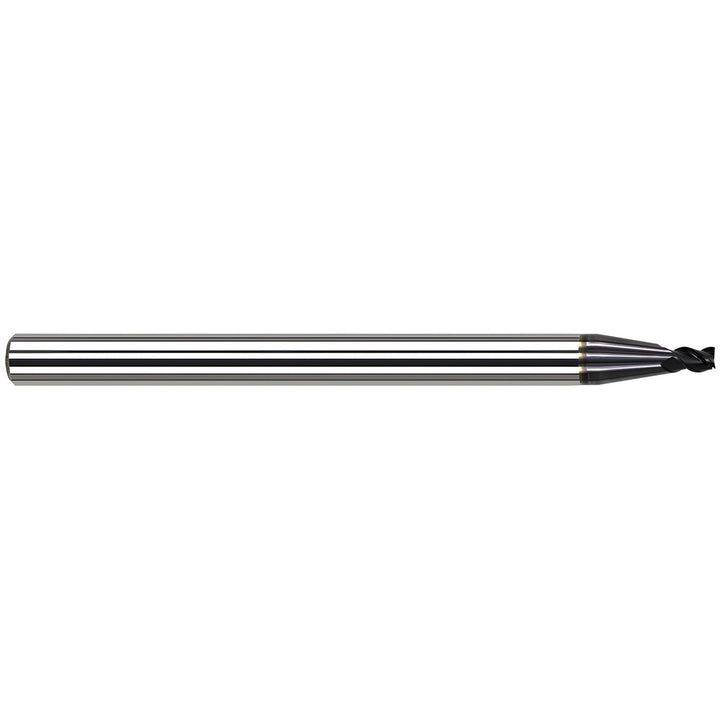

0.0984" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 979351-C6

MFR# 979351-C6Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills

$39.37List $42.64 Save 7%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 979351-C6 is a 0.0984 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius (mm)0.20

Corner radius tolerance0.025 to -0.025 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withHigh Precision Toolholder

Helix styleVariable

Length of cut0.1563

Length typeRegular

Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy

Material removal typeRoughing & Finishing

Mill diameter0.0984

Mill diameter tolerance0.00 to -0.02 mm

Number of flutes3

Overall length (mm)50.00

Overall length tolerance0.25 to -0.00 mm

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Shank diameter (mm)4.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
