Iscar

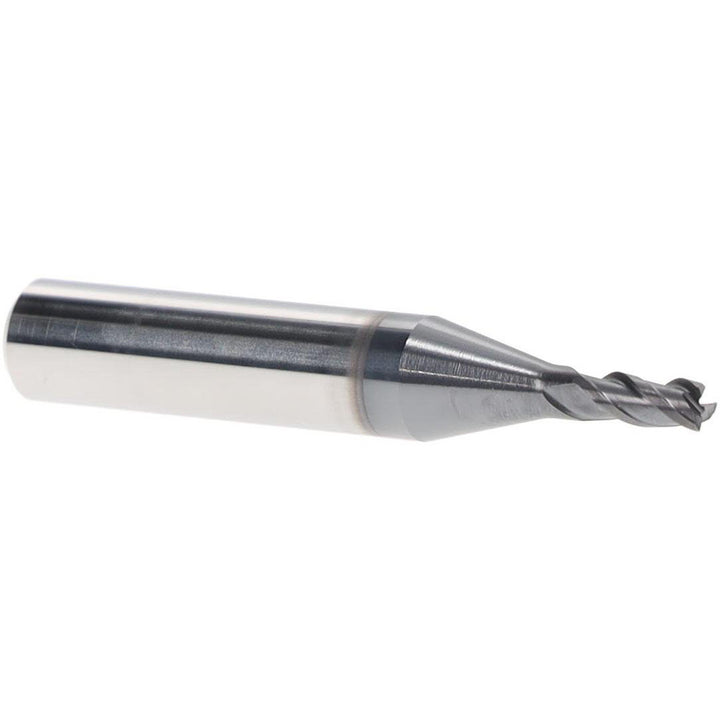

0.0984" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5651130
MFR# 5651130
$33.65List $43.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5651130 is a 0.0984 3-flute Solid Carbide (IC900) square end mill. 0.1969 length of cut.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut0.1969
Length of cut range0.1000 - 0.2000
Length typeStub
Material gradeIC900
Mill diameter0.0984
Mill diameter tolerance-0.014 to 0.028 mm
Number of flutes3
Overall length (mm)36.00
Shank diameter0.2362
Shank diameter tolerance0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
