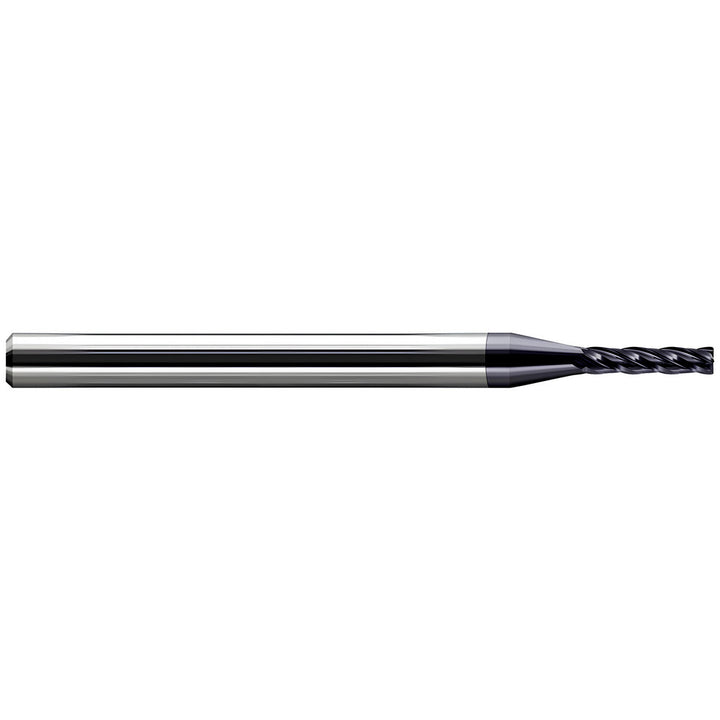

1/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 981910-C3

Harvey Tool

1/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 981910-C3

MFR# 981910-C3Series Miniature End Mills - Corner Radius - Long Flute; Miniature End Mills

$51.26List $59.84 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 981910-C3 is a 1/8 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 1 length of cut, 2-1/2 overall length. Series Miniature End Mills - Corner Radius - Long Flute; Miniature End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0100
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Length of cut in1
Length typeExtra Long
Material applicationNon-Ferrous Metal; Cast Iron; Steel; Stainless Steel; Composite
Material removal typeFinishing
Mill diameter in1/8
Mill diameter tolerance0.0000 to -0.0020 in
Number of flutes4
Overall length in2-1/2
Overall length tolerance0.0100 to -0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
