9/32" 4-Flute Solid Carbide Undercutting End Mill - Harvey Tool 990618

Harvey Tool

9/32" 4-Flute Solid Carbide Undercutting End Mill - Harvey Tool 990618

MFR# 990618

$109.70List $118.83 Save 7%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/32
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

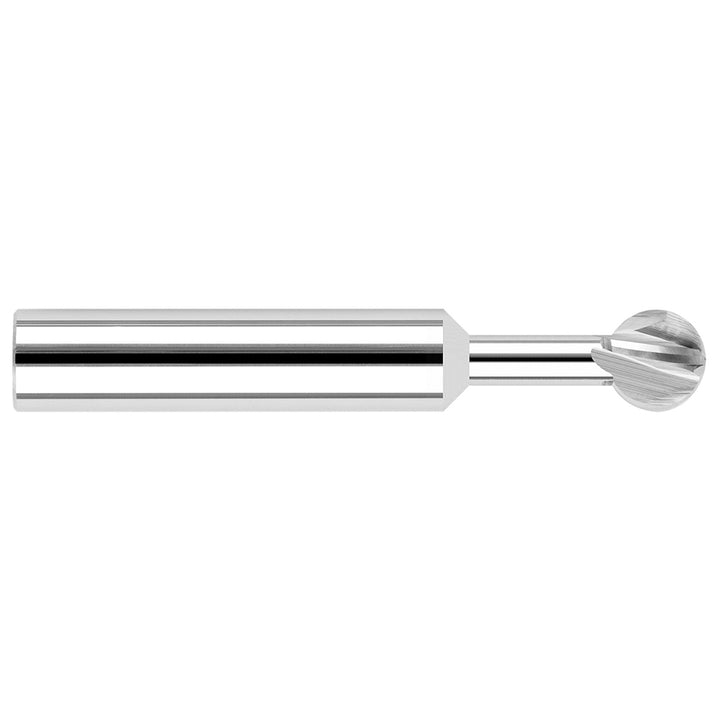

The Harvey Tool 990618 is a 9/32 4-flute Solid Carbide undercutting end mill. 2-1/2 overall length.

Specifications

Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut0.2620
Mill diameter in9/32
Neck diameter0.1270
Neck length0.1875
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Single or double endSingle
Variable helixNo
Variable indexNo
Wrap angle degrees300
