Supermill

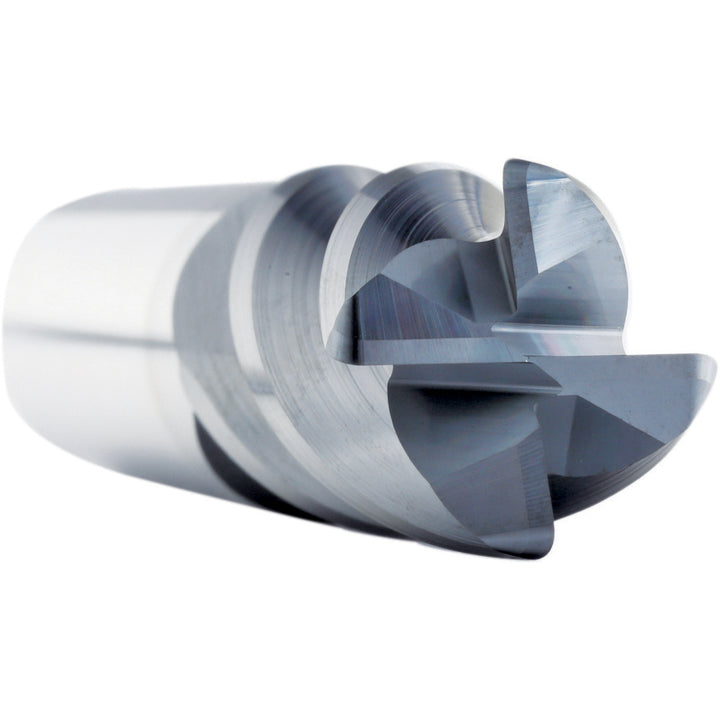

9/32" 4-Flute Solid Carbide Square End Mill, AlCrN - Supermill 5251201

MFR# 5251201Series SAP

$45.90List $58.87 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter9/32

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5251201 is a 9/32 4-flute Solid Carbide (Micrograin) square end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, cast iron. 1/2 length of cut, 2 overall length. Series SAP.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coating finish familyAlCrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Material gradeMicrograin

Mill diameter in9/32

Number of flutes4

Overall length in2

Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Cast Iron

Shank diameter in5/16

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
