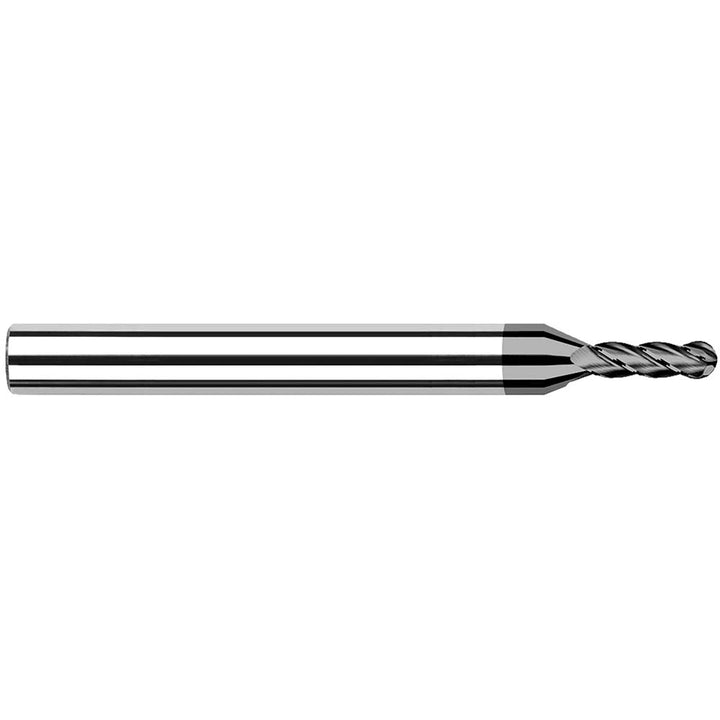

1/2" 4-Flute Solid Carbide Ball End Mill, CVD Diamond - Harvey Tool 999432

MFR# 999432Series Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Ball, Material Specific End Mills

$450.37List $525.80 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingCVD Diamond

Description

The Harvey Tool 999432 is a 1/2 4-flute Solid Carbide (Carbide) ball end mill with a CVD Diamond finish for longer tool life. Suited for graphite. 1-1/2 length of cut, 3 overall length. Series Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Ball, Material Specific End Mills.

Specifications

ChipbreakerNo

Coating finishCVD Diamond

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/2

Length typeStandard

Manufacturers catalog number999432

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.2500

Number of flutes4

Overall length in3

Primary workpiece materialGraphite

Reach length in1-1/2

Secondary workpiece materialNon-ISO

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
