Helical Solutions

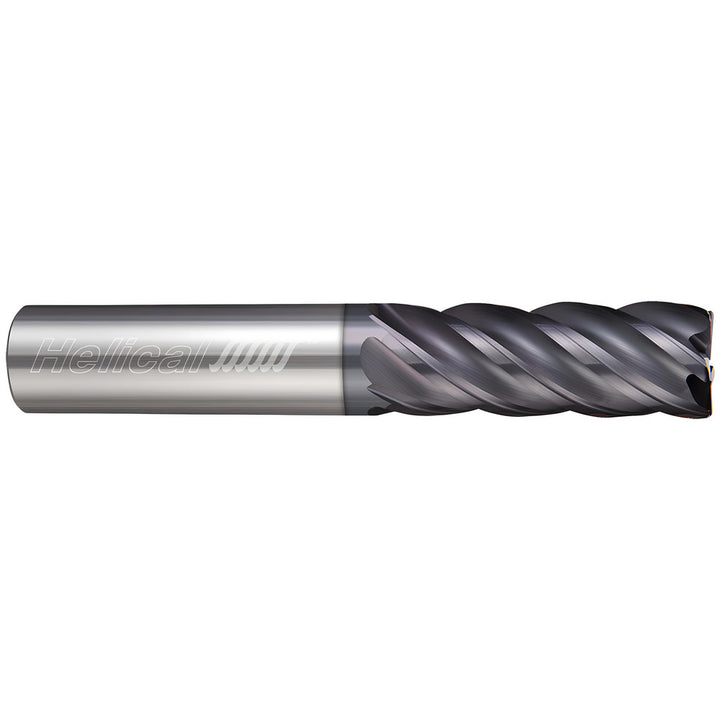

1/2" 4-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 53241

MFR# 53241Series HSV-RN-4

$234.61List $273.90 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 53241 is a 1/2 4-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 5/8 length of cut, 6 overall length. Series HSV-RN-4.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAPLUS

Coolant throughNo

Corner radius0.0200

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in5/8

Length typeStandard

Material applicationLow-Alloy Steel; Medium Alloy Steel; Tool Steel; Cast Iron; Titanium

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance-0.0020/0.0000 in

Neck diameter0.4750

Number of flutes4

Overall length in6

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialSteel; Cast Iron

Reach length in3-3/8

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
