Helical Solutions

1/2in" 4-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 56542

MFR# 56542Series 4 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, & Cast Iron

$156.60List $182.82 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2in

Flutes4

MaterialSolid Carbide

CoatingAPLUS

Description

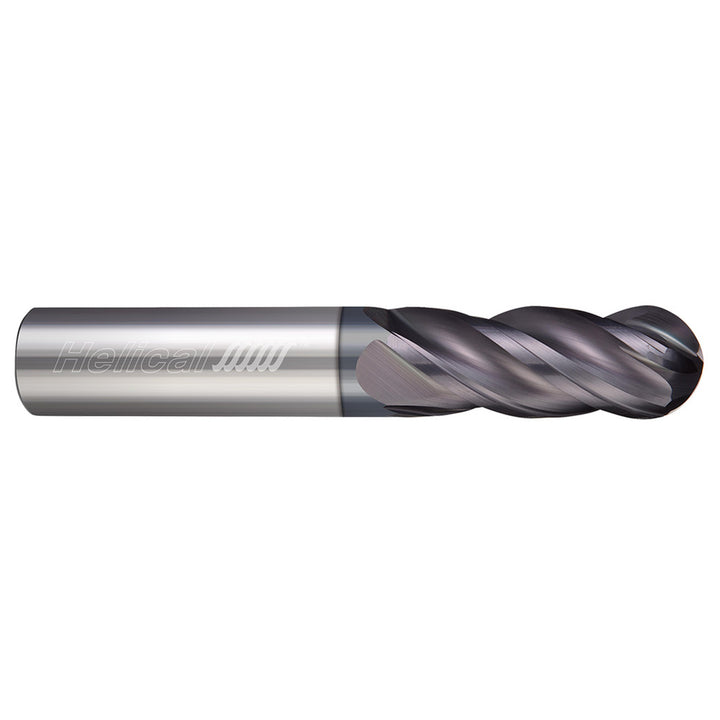

The Helical Solutions 56542 is a 1/2in 4-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-5/8in length of cut, 4 overall length. Series 4 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, & Cast Iron.

Specifications

ChipbreakerNo

Coating finishAPLUS

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Length of cut in1-5/8in

Length typeStandard

Manufacturers catalog number56542

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in1/2in

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.2500

Number of flutes4

Overall length in4

Overall length tolerance+0.0620/-0.0620 in

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length in1-5/8

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexYes
