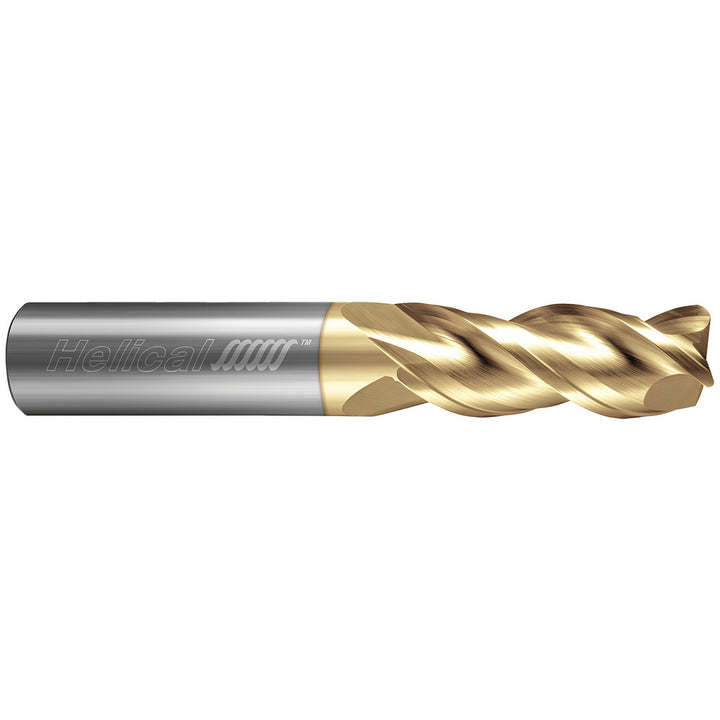

3/16" 5-Flute Solid Carbide Corner Radius End Mill, Tplus - Helical Solutions 59856

MFR# 59856Series HEV-5

$26.55List $28.76 Save 7%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes5

MaterialSolid Carbide

CoatingTplus

Description

The Helical Solutions 59856 is a 3/16 5-flute Solid Carbide corner radius end mill with a Tplus finish for longer tool life. Suited for stainless steel, superalloys & titanium. 5/16 length of cut, 2 overall length. Series HEV-5.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTplus

Coolant throughNo

Corner radius0.0100

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in5/16

Length typeStub

Material applicationStainless Steel; Superalloys & Titanium

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes5

Overall length in2

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialStainless Steel; Superalloys & Titanium

Secondary workpiece materialNon-Ferrous Metal; Hard Material

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
