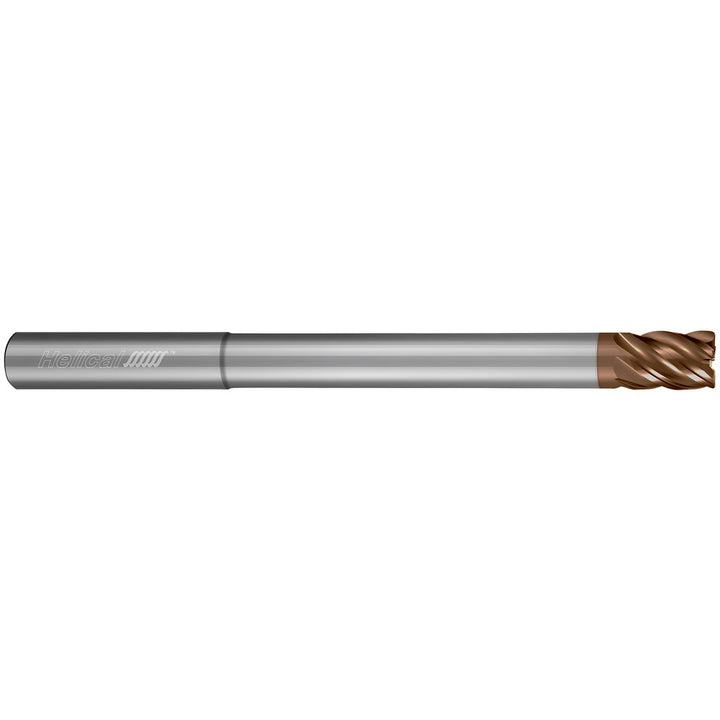

1/2" 6-Flute Solid Carbide Corner Radius End Mill, Tplus - Helical Solutions 83154

MFR# 83154Series HEV-C-6

$170.35List $198.88 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes6

MaterialSolid Carbide

CoatingTplus

Description

The Helical Solutions 83154 is a 1/2 6-flute Solid Carbide corner radius end mill with a Tplus finish for longer tool life. Suited for steel, stainless steel, cast iron. 1 length of cut, 3 overall length. Series HEV-C-6.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishTplus

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withHigh Precision Toolholder

Length of cut in1

Material applicationStainless Steel; High-Temperature Alloy; Hardened Steel

Material removal typeRoughing

Mill diameter in1/2

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes6

Overall length in3

Overall length tolerance-0.0620 to 0.0620 in

PitchVariable

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
