Helical Solutions

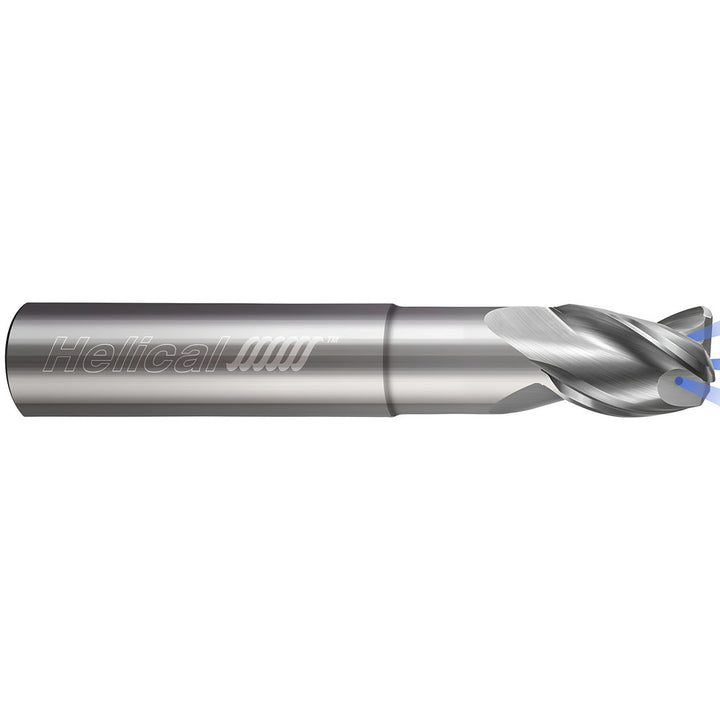

1/2" 5-Flute Solid Carbide Corner Radius End Mill - Helical Solutions 84249

MFR# 84249Series HVAL-C-5

$128.25List $138.92 Save 7%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes5

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Helical Solutions 84249 is a 1/2 5-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1-5/8 length of cut, 4 overall length. Series HVAL-C-5.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0100

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in1-5/8

Length typeStandard

Material applicationAluminum; Non-Ferrous Metal; Cast Iron; Steel; Stainless Steel; Exotic Metal; Titanium; Plastic; Wood; Composite; Graphite; Hard Alloy

Material removal typeRoughing

Mill diameter in1/2

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes5

Overall length in4

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0003

Variable helixNo

Variable indexYes
